SEALING SET R-83
 |
Piston
seal R-83 is sealing set consist of reinforced rubber ring, rubber spring
and two guide rings made by plastics.
Sealing set are good resistance to
priction and abrasion and have long operation life in conditions of
extremely stress, deformation and oscilation at cilinder.
|
Operating conditions
| Permissible
pressure (MPa) |
40 |
25 |
16 |
| Temperature
range (0C) |
60 |
80 |
100 |
| Medium |
Hydraulic
oil type: H; HL; HLP
Emulsion water-oil HFB
Emulsion oil-water HFA |
| Linear
velocity (m/sek) |
0,5
|

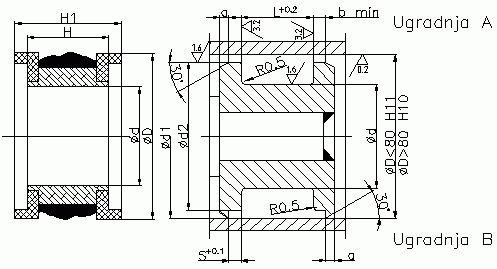

LIST OF DIMENSIONS AND INSTALLATION POINT OF SEALING
SET R-83
| Nominal
size |
ø
D
|
ø
d
|
H |
H1 |
ø
ds
|
ø
d1
|
L |
a |
b |
s |
| 32 |
32 |
22 |
15 |
20 |
28 |
|
15,5 |
2 |
3 |
|
| 40 |
40 |
26 |
15 |
20 |
36 |
|
15,5 |
2,5 |
3,5 |
|
| 50 |
50 |
34 |
20 |
26 |
46 |
|
20,5 |
3 |
4 |
|
| 63 |
63 |
47 |
20 |
26 |
59 |
|
20,5 |
3 |
4 |
|
| 70 |
70 |
54 |
20 |
26 |
66 |
|
20,5 |
3 |
4 |
|
| 80 |
80 |
62 |
22 |
29 |
76 |
|
22,5 |
3,5 |
4,5 |
|
| 90 |
90 |
72 |
22 |
29 |
86 |
|
22,5 |
3,5 |
4,5 |
|
| 100 |
100 |
82 |
22 |
29 |
96 |
99 |
22,5 |
3,5 |
4,5 |
3,6 |
| 125 |
125 |
103 |
26 |
36 |
121 |
124 |
26,5 |
4 |
5,5 |
5,1 |
| 140 |
140 |
118 |
26 |
36 |
136 |
139 |
26,5 |
4 |
5,5 |
5,1 |
| 150 |
150 |
128 |
26 |
36 |
146 |
149 |
26,5 |
4 |
5,5 |
5,1 |
| 160 |
160 |
138 |
26 |
36 |
156 |
159 |
26,5 |
4 |
5,5 |
5,1 |
| 180 |
180 |
158 |
26 |
36 |
176 |
179 |
26,5 |
4 |
5,5 |
5,1 |
| 200 |
200 |
175 |
31 |
44 |
196 |
199 |
31,5 |
5 |
7 |
6,6 |
| 225 |
225 |
200 |
31 |
44 |
221 |
224 |
31,5 |
5 |
7 |
6,6 |
| 250 |
250 |
225 |
31 |
44 |
246 |
249 |
31,5 |
5 |
7 |
6,6 |
Order example: Cylinder ø100
Sealing
set 83 100
|
